Wound Core

PML offers precision wound cut core solutions designed for high-efficiency magnetic performance. Manufactured using advanced winding and cutting processes, these cores ensure low losses, high permeability, and consistent quality. Ideal for transformers, inductors, and electrical systems, they deliver reliable performance across demanding applications.

Core Capabilities

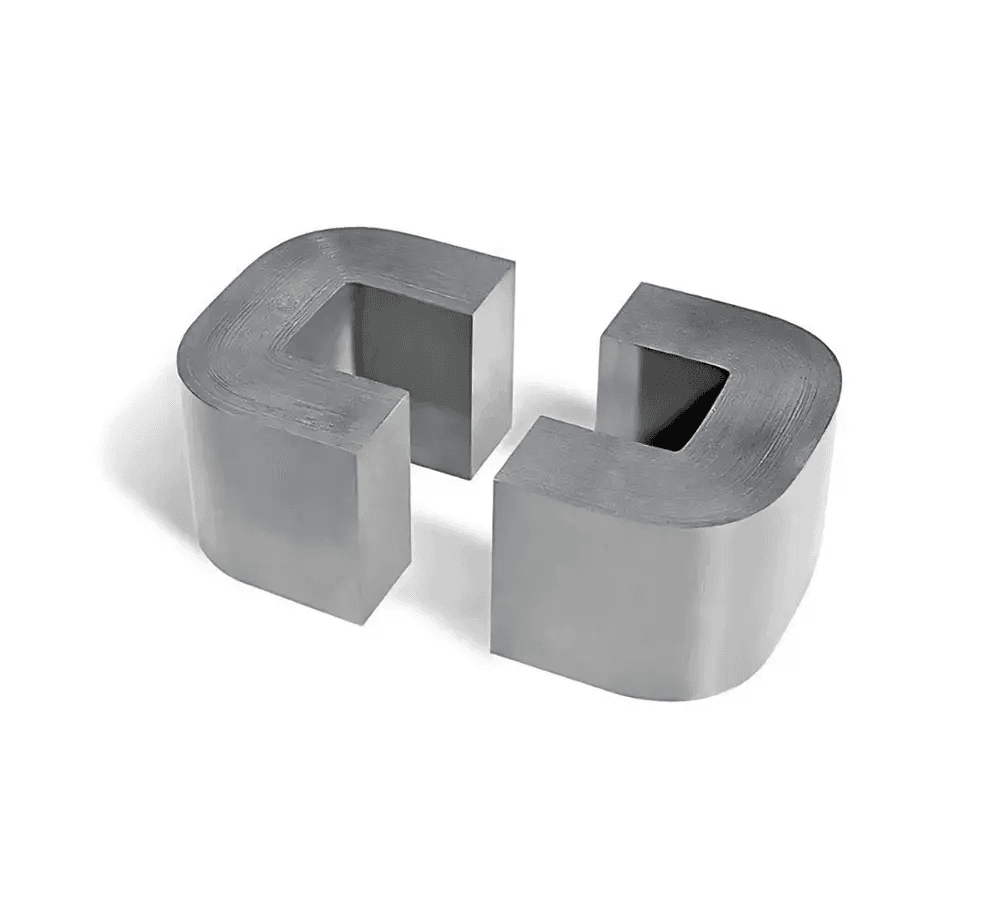

Pair of amorphous cut cores

Precision Core Manufacturing

  • Manufactured using advanced winding and cutting techniques for high dimensional accuracy.
  • Ensures uniform magnetic properties and minimal variation across cores.
  • Delivers consistent quality for reliable performance in critical applications.

Low-Loss Magnetic Performance

  • Designed to minimize core losses and improve overall energy efficiency.
  • Provides high permeability for effective magnetic flux conduction.
  • Supports stable performance across varying operating conditions.

Application-Specific Customization

  • Available in various shapes, sizes, and material grades as per requirements.
  • Tailored designs for transformers, inductors, and power electronics.
  • Ensures optimal performance based on specific electrical and thermal needs.

Rigorous Testing & Validation

  • Each assembly undergoes comprehensive electrical, functional, and environmental testing to ensure performance and reliability.
  • Customized test setups simulate real-world application conditions for accurate validation.
  • Ensures consistent quality and compliance with industry standards across all assemblies.

Product Scope & Industry Applications

We manufacture precision components for industries that demand dimensional accuracy, mechanical strength, and reliable performance:

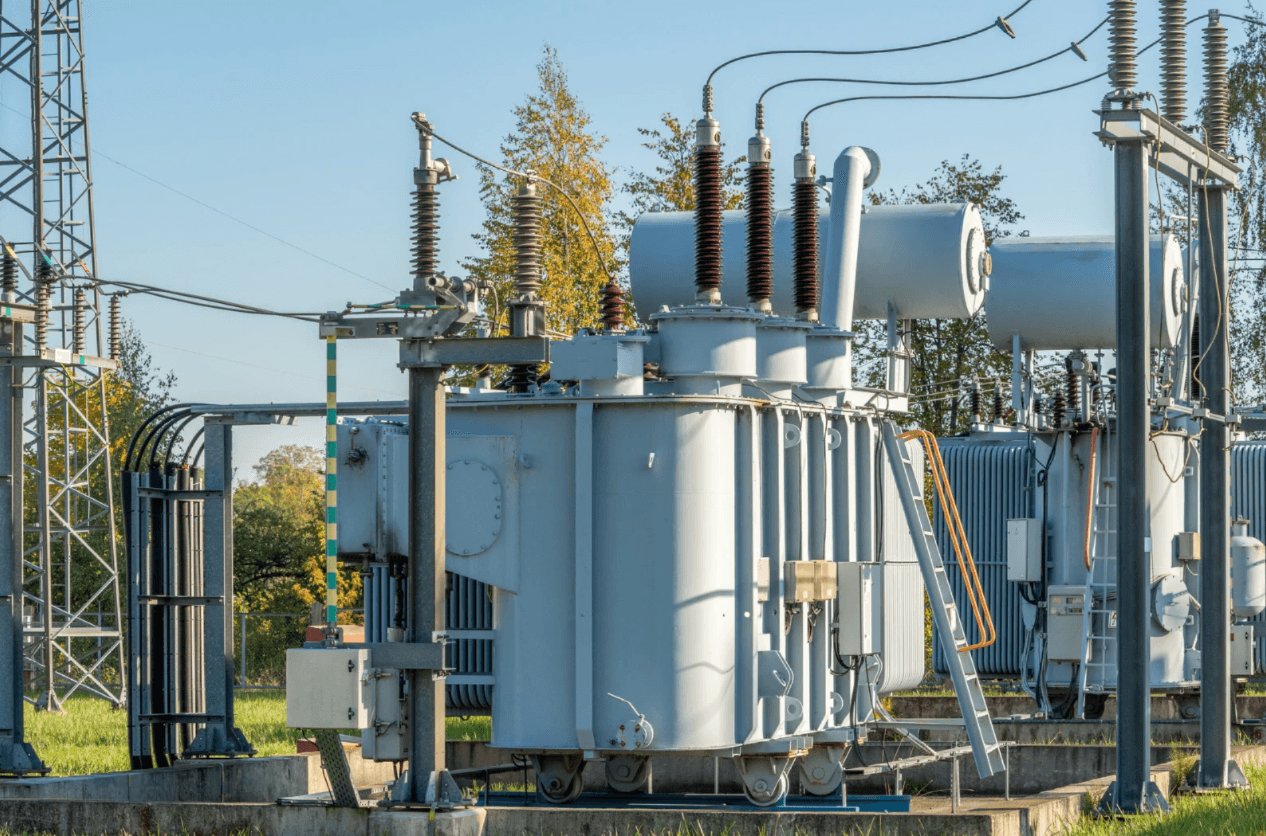

Electrical power transformer at a substation

Transformers

Used in power and distribution transformers for efficient energy transfer with low core losses.

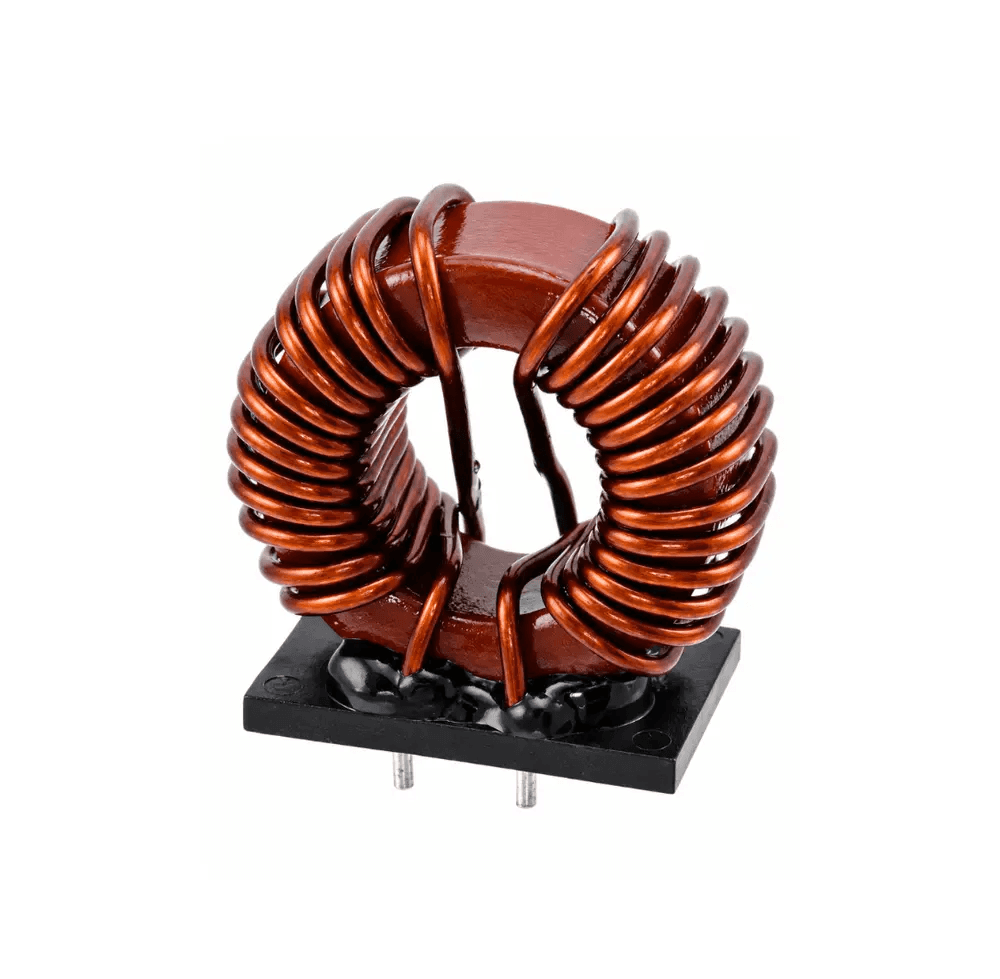

Common mode choke with copper winding

Inductors

Enables high-performance inductors with stable inductance and minimal energy loss.

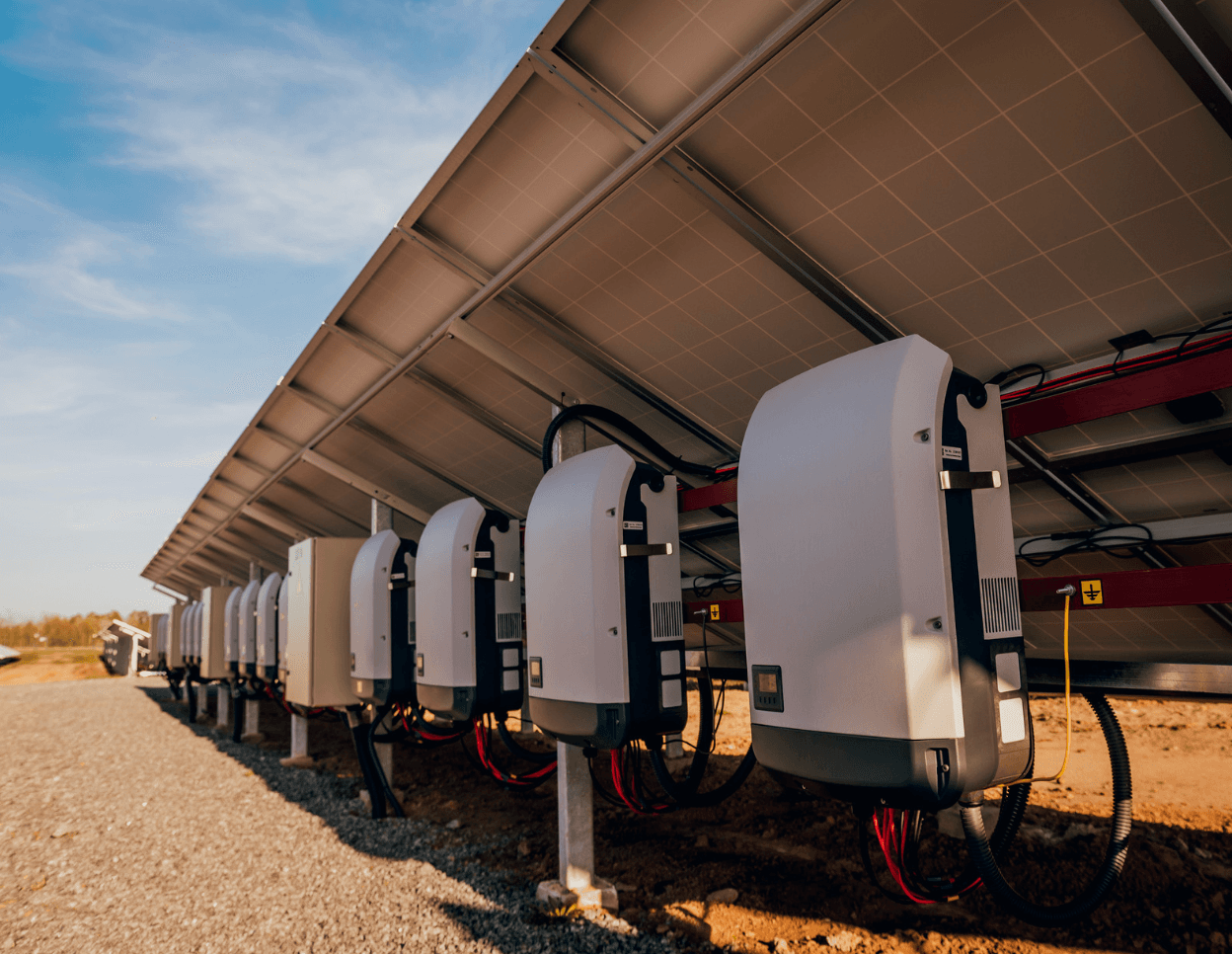

Solar inverters mounted under solar panels

Power Electronics

Supports efficient operation in converters, inverters, and switching devices.

Offshore wind turbines along a coastline

Renewables

Enhances performance and efficiency in solar and wind energy systems.

MRI scanner in a hospital room

Medical Devices

Ensures precision and reliability in healthcare and diagnostic equipment.

Close-up of printed circuit boards

Consumer Electronics

Supports compact and high-performance assemblies for electronics and IoT devices.

Delivering unique, precise, and reliable heat treatment solutions.

Our unique strengths combine advanced process control, material expertise, and scalable operations to deliver consistent, high-quality heat treatment solutions.

High Magnetic Efficiency

High Magnetic Efficiency

  • Low Core Loss: Minimizes energy loss for improved system efficiency
  • High Permeability: Ensures effective magnetic flux conduction
  • Stable Performance: Maintains consistency across varying load conditions
Precision Manufacturing

Precision Manufacturing

  • Accurate Cutting: Ensures tight dimensional tolerances
  • Uniform Properties: Delivers consistent magnetic characteristics
  • Quality Consistency: Maintains reliability across production batches
Custom Design Flexibility

Custom Design Flexibility

  • Size Variability: Available in multiple shapes and dimensions
  • Material Options: Supports different core materials as per application
  • Application Fit: Tailored for transformers, inductors, and power electronics

Competitive Advantages

  • 01

    Low Core Loss

    Minimizes energy losses, improving overall efficiency of electrical systems.

  • 02

    High Magnetic Stability

    Ensures consistent performance under varying electrical and thermal conditions.

  • 03

    Precision Geometry

    Delivers accurate core dimensions for optimal fit and performance in applications.

  • 04

    Flexible Customization

    Adapts core design, size, and material to meet specific application requirements.

C-shaped wound cut core

Certifications & Quality Assurance

Our wound core operations are certified and built for reliability:

ISO 9001:2015 certification logo

ISO 9001

Quality Management Systems (QMS)

IATF 16949:2016 certification logo

IATF 16949

Automotive Quality Standard

DQS AS 9100 certification logo

AS 9100

Aerospace Quality Certification
