Current Sensing & Shunt Solutions
Low inductance. Wide temperature range.
Low-inductance current sensing for BMS, power inverters, energy meters, and IGBT modules - rated from −50 °C to +150 °C.
PML's automotive shunt resistors deliver accurate, stable current measurement across busbar and SMD form factors. Built with copper construction and a ±50 ppm/K TCR, the full range covers 50 µΩ to 1 mΩ resistance and operates reliably from −50 °C to +150 °C. Available in configurations for direct busbar mounting, PCB integration via solderable pins, DBC/IMS substrates, and surface-mount assembly - with custom resistance values available on request.
Model | Type | Technical Specs | Description |
R100-01 | Busbar shunt, hole terminals | 100 µΩ · 7 W cont. · up to 600 A peak | Copper busbar shunt with hole terminals for direct installation and high-precision current measurement. |
R100-BAR-03 | Low-inductance busbar shunt | 100 µΩ · <5 nH · 7 W cont. | Copper busbar with hole terminals and low inductance for noise-sensitive power circuits. |

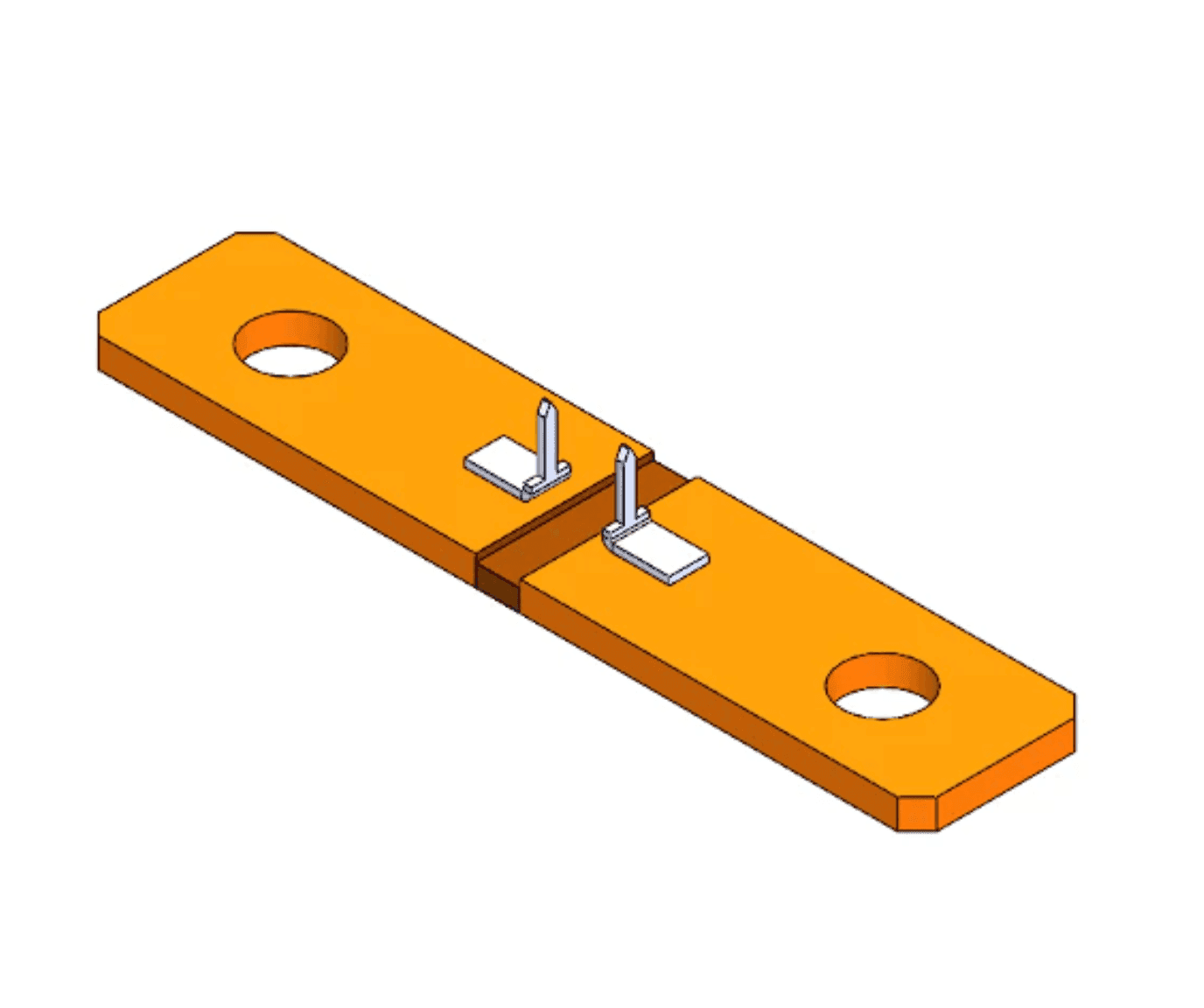

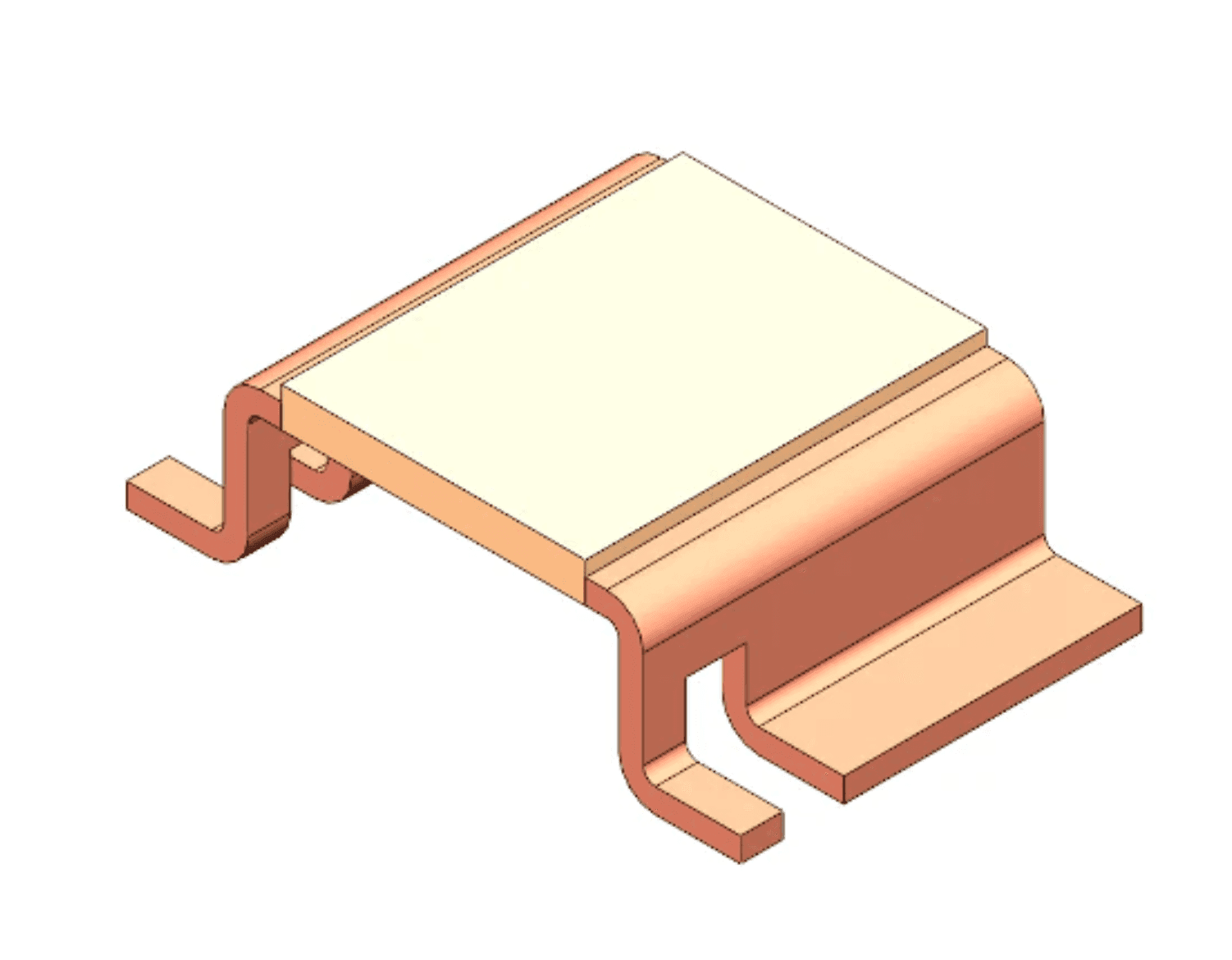

R100-BAR-03B | Busbar shunt with solderable pins | 100 µΩ · <5 nH · hole terminals + solderable pins | Busbar shunt with solderable pin-type sense contacts for direct PCB connection. |
R50-BAR-03B | Low-resistance busbar shunt | 50 µΩ · <5 nH · hole terminals + solderable pins | Low-resistance variant for high-current paths requiring minimal voltage drop. |
R50-BAR-04B | High-power busbar shunt | 50 µΩ · <5 nH · 15 W cont. · 60 W peak | High-power busbar shunt for sustained high-current loads in traction inverters and battery systems. |
R500-BRI-04 | DBC/IMS substrate shunt | 500 µΩ · <3 nH · copper terminals | Precision shunt with copper terminals for DBC and IMS substrate assemblies and IGBT module integration. |
R1000-SMD-05 | SMD shunt, 3920 package | 1 mΩ · <2 nH · 5 W cont. · SMD 3920 | Surface-mount shunt in 3920 package for high-density PCB designs in power inverter and BMS applications. |
R1000-SMD-06 | SMD shunt, 2512 package | 1 mΩ · <2 nH · 3 W cont. · SMD 2512 | Compact 2512 surface-mount shunt for space-constrained PCB layouts. |
