Current Sensing & Shunt Solutions
Precision Current Measurement Solutions for Industrial Demands
Ensure dependable current sensing and measurement across automotive, aerospace, energy, and telecom applications with our precision-engineered shunt assemblies.

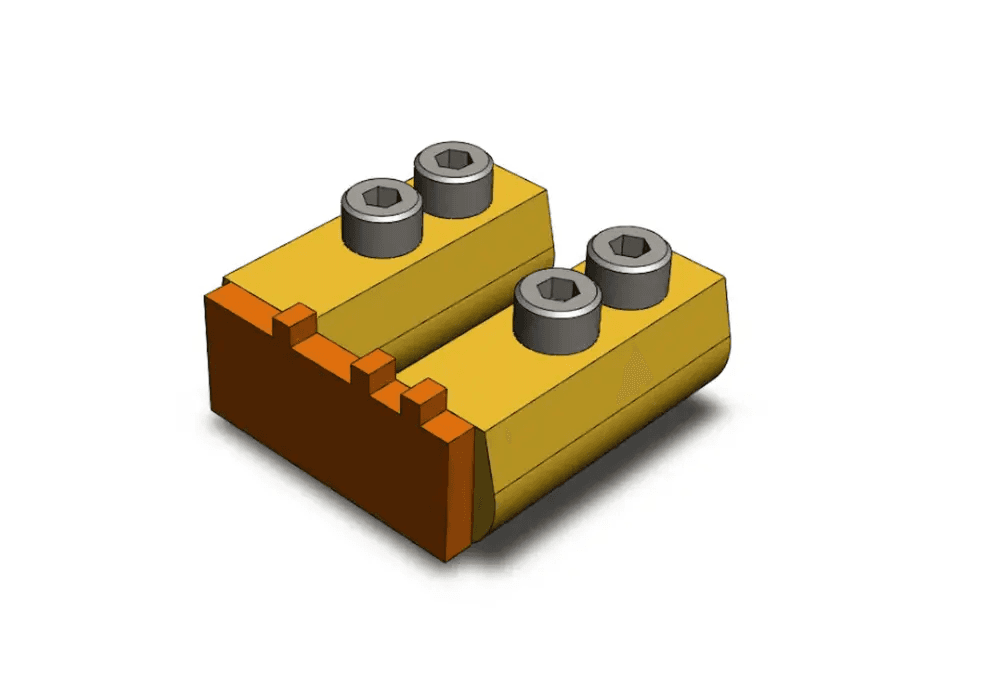

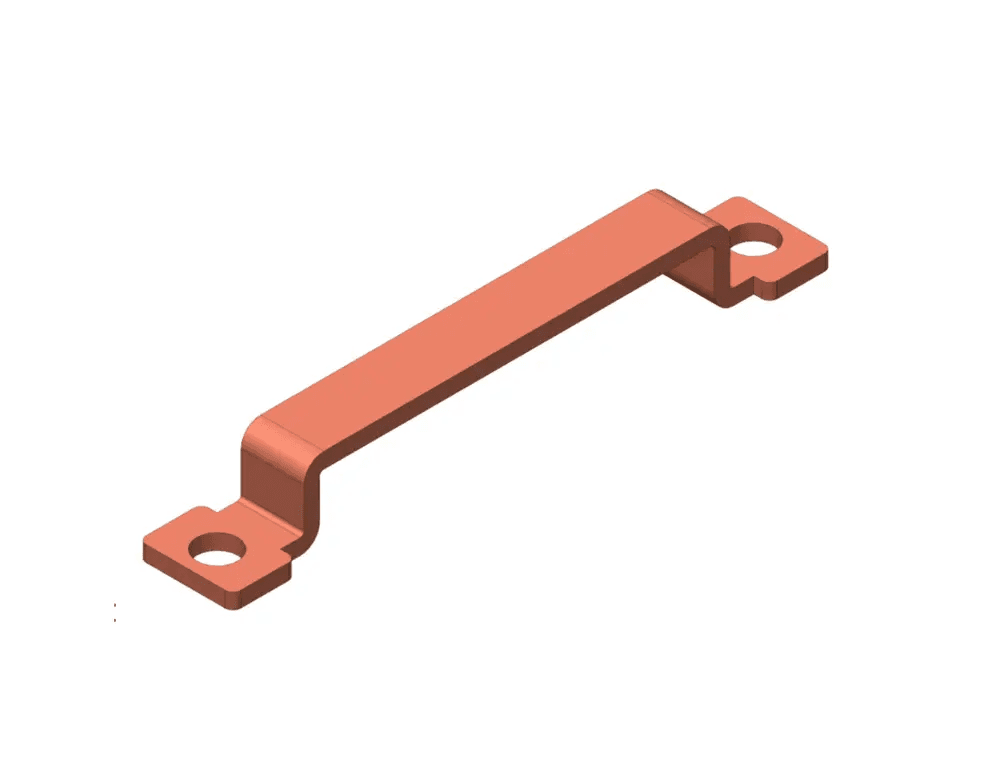

A shunt and its assemblies are used to measure electrical current and represent one of the most widely adopted methods for current measurement. A shunt is a resistive element with a specific predefined resistance introduced into an electrical or electronic circuit. The voltage drop across this resistance is measured, and using Ohm's law, the corresponding current value is derived. This method enables instantaneous AC or DC current measurement.
Designed for accurate current sensing in batteries, inverters, power supplies, and energy meters.
Tight tolerance solutions for sensitive applications such as lab equipment and high-end electronics.
Engineered to your exact specs with special resistance ratings, thermal compensation, and mounting styles.
From high-voltage grounding to intricate signal protection, rely on our custom-woven assemblies for maximum conductivity and lifelong structural integrity.
1
2
3
4
1
2
3
4
5
6
7
8
9
Process Capability
Exceptional precision with minimal error margins.
Easily fits into complex assemblies & built with premium materials to endure harsh conditions.
From milliamps to hundreds of amps.
Temperature-compensated performance.
Techincal Sepcificiation
Nominal Chemical Composition (%) | |||
Alloy | Ni | Mn | Cu |
Mang 38 | 2-4 | 10-12 | Balance |
Mang 43 | 2-4 | 11-13 | Balance |
Techincal Sepcificiation
Physical Properties (at room temperature) | |||||
Alloy | Density g/cm3 | Specific ResistanceμΩ-cm | Thermal Linear Expansion Coeff. between 20-1000O C -6 10 /°C | Temp Coeff of Resistance -6 x10 /°C | Thermal EMF against Copper at 20°C μV/K |
Mang 38 | 8.40 | 38.5 | 18 | ±15 (Range 40-60 °C) | - |
Mang 43 | 8.41 | 43.0 | 18 | ±15 (Range 15-35 °C) | Standard: -1.00; Special ±0.20 |
Techincal Sepcificiation
Mechanical Properties (for cold drawn annealed wire) | ||||
Alloy | Tensile strength N/mm2 |
| Elongation % at L =100 mm |
|
| Min | Max | Min | Max |
Mang 38 | 350 | 450 | 15 | 30 |
Mang 43 | 350 | 450 | 15 | 30 |
Techincal Sepcificiation
Size Range | |||
Form | Dia (mm) | Width (mm) | Thickness (mm) |
Wire | 12.0-0.15 | - | - |
Strip |
| 0.4-80 | ≥ 0.10 |
With over 60 years of manufacturing excellence, PML delivers shunt assemblies trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.
ISO 45001
Occupational Health and Safety (OH&S) management systems
ISO 14001
Environmental Management Systems (EMS)
ISO 9001
Quality Management Systems (QMS)
IATF 16949
International Standard for Automotive Management Systems
AS 9100
Aerospace Quality Management System (QMS)
A shunt assembly is a low-resistance component used to measure electrical current by creating a precise voltage drop proportional to the current flowing through it.
