Molded & Overmolded Components

Electrical Molded Parts

Precision Injection Molding for High-Performance Electrical Applications

Electrical molded part with copper inserts

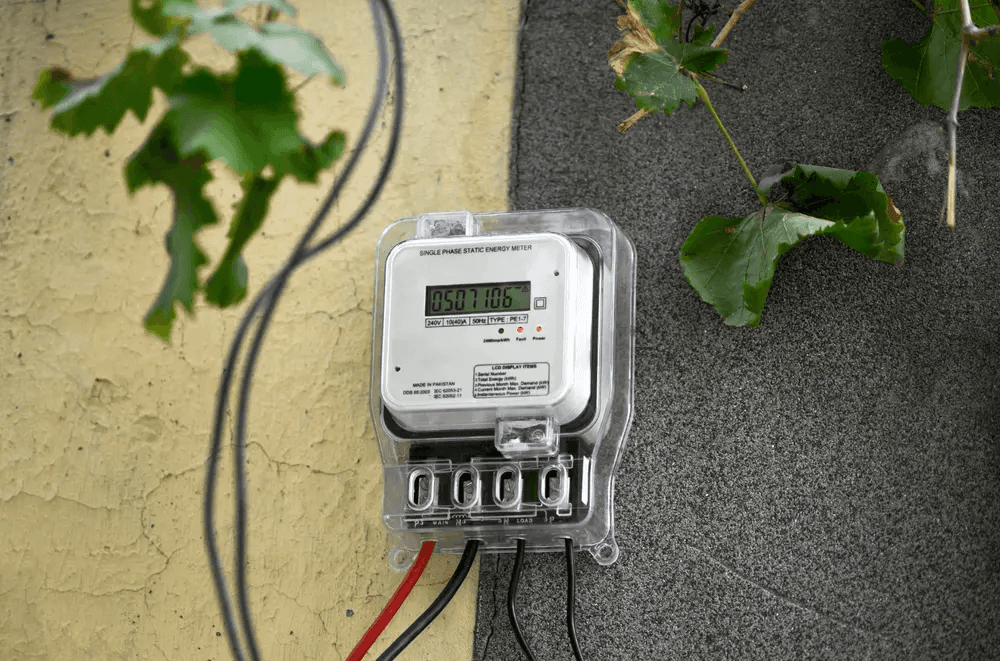

Smart electricity meter mounted on a wall

The Impermeable Shield for High-Performance Power

Engineered from high-dielectric polymers, our custom-molded components provide the unbreakable moisture, thermal, and mechanical protection required.

Manufacturing Process

This process delivers precision-molded components with high dielectric strength and mechanical reliability. The process of creating electrical molded parts at PML follows a robust, quality-controlled sequence:

1

Mold Design

Custom molds developed to support complex geometries and insert placement

2

Material Selection

Selection of insulating and, where applicable, conductive materials

3

Insert Placement

Metal inserts placed in-mold for components requiring conductivity

4

Injection Molding

Molten polymer is injected to encapsulate inserts and form the part

5

Cooling

Controlled cooling ensures material integrity and dimensional accuracy

6

Ejection

The solidified part is removed from the mold

7

Post-Processing

Includes trimming, deburring, and quality inspection

Injection moulding machine

Tooling Used

Technical Specification

These tools are critical for repeatability, integration, and quality in molding electrical components.

Tool TypeFunction
Custom MoldsShape and hold inserts during injection molding
Insert HoldersSecure placement of connectors and terminals
Injection Mold CavitiesCreate complex geometries around inserts
Ejection SystemsRemove parts post-cooling with minimal deformation
Thermal Regulation UnitsMaintain optimal flow and curing conditions
Car dashboard and steering wheel

Forged for High-Integrity Environmental Resilience

At PML India, we specialize in developing molded electrical components with tight tolerances, reliable insulation, and long-term durability for demanding use in automotive, industrial, and consumer electronics sectors.

Inspection & Testing

All electrical molded parts undergo rigorous testing to ensure compliance with industry standards:

1

Visual Inspection

Surface quality, insert placement, and molding accuracy

2

Dimensional Measurement

Conformance to design tolerances

3

Electrical Testing

Includes continuity, insulation resistance, and contact resistance

4

Dielectric Strength Test

Assesses insulation integrity under high voltage

5

Mechanical Testing

Evaluates impact strength and wear resistance

6

Thermal Testing

Simulates high-temperature operating conditions

Key Features & Benefits

PML manufactures high-quality electrical molded components that combine functionality, safety, and precision.

1

Electrical Insulation

Protects circuits and users by preventing short circuits and electrical shocks.

2

High Durability

Withstands mechanical stress, heat, and environmental exposure.

3

Design Flexibility

Enables complex geometries, multi-material integration, and embedded inserts.

4

Customizable Configurations

Adaptable to specific voltage, current, and insulation requirements.

5

High-Performance Compliance

Meets stringent electrical safety and thermal performance standards.

Applications

Electrical molded parts manufactured by PML are widely used in:

1

Power Distribution

Circuit breakers, relays, fuse holders

2

Automotive

Sensors, connectors, electrical housings

3

Consumer Electronics

Wire organizers, switch casings, protective enclosures

4

Industrial Equipment

Terminal housings, isolators, molded cable ends

5

Telecommunication Devices

Signal connectors and junctions

Power lines at sunset

Trust Reliability & Quality

With over 65 years of manufacturing excellence, PML delivers Electrical Molded Parts trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.

ISO 45001:2018 certification logo

ISO 45001

Occupational Health and Safety (OH&S) management systems

ISO 14001:2015 certification logo

ISO 14001

Environmental Management Systems (EMS)

ISO 9001:2015 certification logo

ISO 9001

Quality Management Systems (QMS)

IATF 16949:2016 certification logo

IATF 16949

International Standard for Automotive Management Systems

DQS AS 9100 certification logo

AS 9100

Aerospace Quality Management System (QMS)
