AC Probe-Transverse 60 MV

Precision AC Magnetic Field Probe with Transverse Sensitivity

A reliable, calibrated solution for evaluating AC magnetic fields in laboratory and field environments.

The AC Probe – Transverse – 60 MV provides peak precision for measuring AC magnetic field intensities and attenuation ratios across a frequency range of 10 Hz to 3000 Hz

What is AC Probe – Transverse 60 MV?

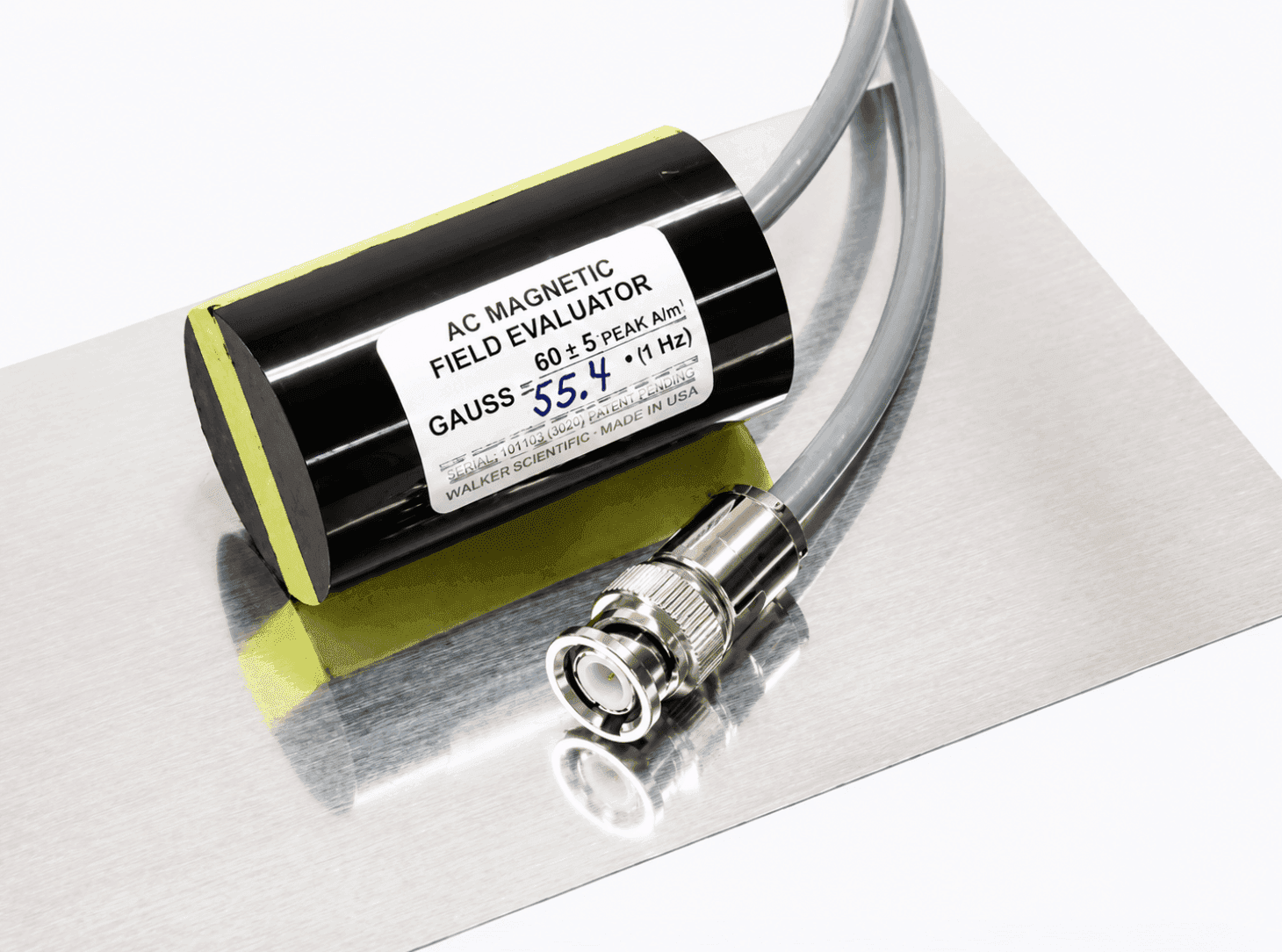

It is a field evaluator probe designed for direct measurement of AC magnetic fields using a digital volt meter (DVM) or oscilloscope. Each probe is individually calibrated, with its unique calibration number labeled directly on the unit to ensure traceable precision. This probe offers transverse directional sensitivity, generating 60 millivolts peak per Gauss at 60 Hz, and is equipped with a standard BNC connector for fast integration with measuring devices.

Benefits

How It Works

Connect the probe to a DVM or oscilloscope using the BNC connector.

Position the probe transversely in the AC magnetic field of interest.

Read the output voltage – proportional to the magnetic field strength.

Apply known sensitivity (60 mV/Gauss) for field strength calculation.

Use across a wide range of EMI or field-testing scenarios.

Key Features

Transverse field orientation

60 mV/Gauss at 60 Hz output

Wide frequency response: 10 Hz to 3000 Hz

Direct output to DVM or oscilloscope

Includes BNC connector for plug-and-measure convenience

Individually calibrated – calibration number labeled

Compact, portable design for bench or field use

Excellent for low-frequency AC field detection

Applications

AC Field Measurement

Measures the intensity of alternating magnetic fields in various environments.

Shielding Verification

Evaluates the effectiveness of magnetic shielding by determining attenuation ratios.

Field Mapping

Maps magnetic field distribution in laboratories, production areas, or testing environments.

EMI Research

Supports research and development activities related to electromagnetic interference control.

Equipment Monitoring

Detects magnetic fields around power lines, transformers, and motors.

Calibration & Testing

Assists in calibration and performance testing of shielding materials and enclosures.
