CO-NETIC® AA Cable Shield

Flexible, High-Permeability Shielding for Magnetic Interference Control

CO-NETIC AA braided cable shield

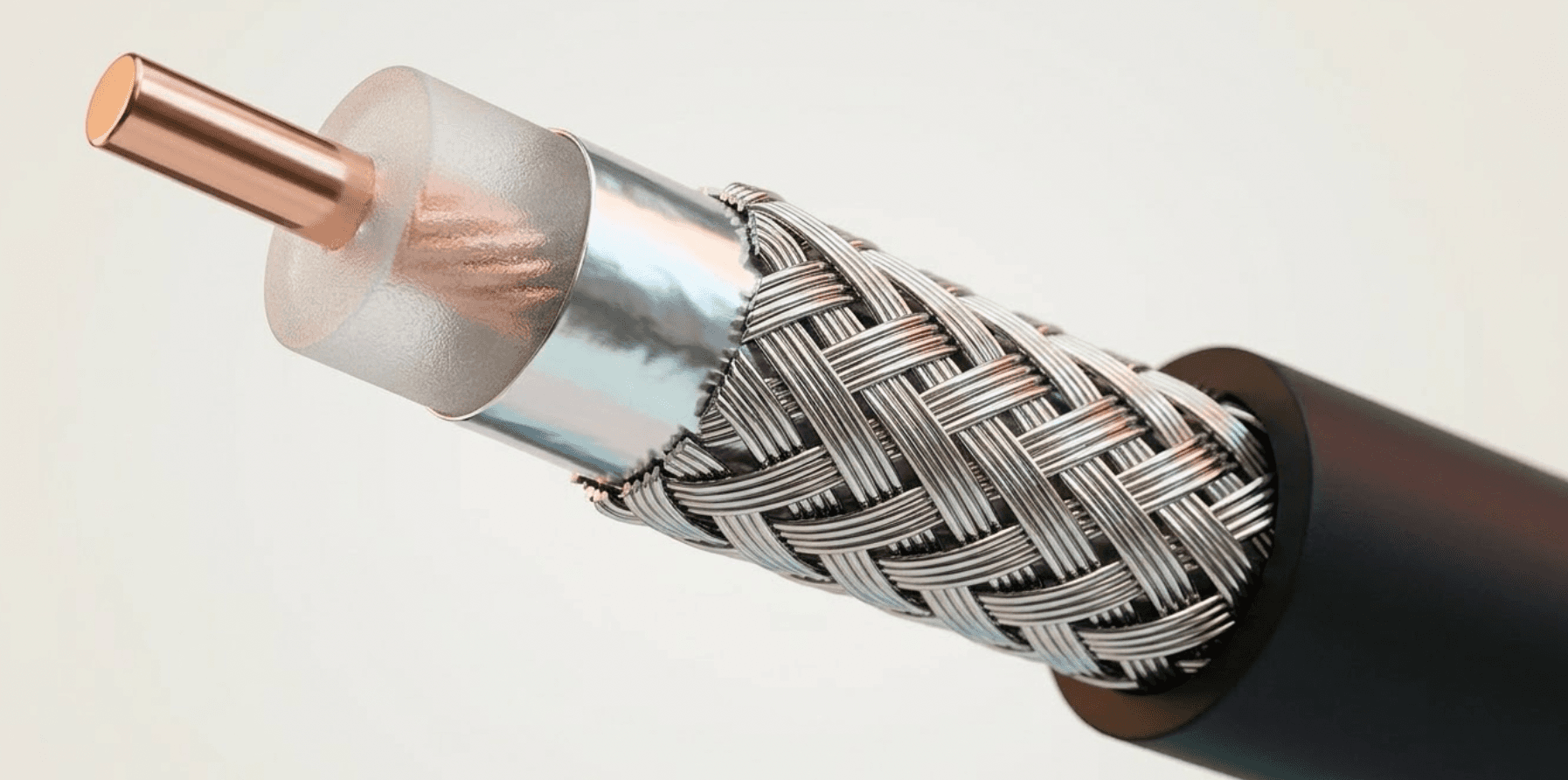

Cutaway of a shielded cable

Continuous Magnetic Shielding in Flexible Form

Mitigate unwanted low-frequency magnetic fields (DC to 100 kHz) with our Co-NETIC® AA Cable Shield.

MRI scanner in a hospital room

CO-NETIC® AA Shielding Integration

Enhance your cable’s performance with our CO-NETIC® AA shielding, engineered to provide maximum attenuation of low-frequency magnetic fields. This high-permeability layer is meticulously wrapped to ensure consistent protection for sensitive data lines against electromagnetic interference (EMI).

Benefits

Benefits of CO-NETIC® AA Cable Shield

1

High Magnetic Permeability

Made from 36 AWG Co-NETIC® AA alloy wire for optimal attenuation of external low-frequency magnetic fields.

2

Continuous Shielding Coverage

Braided tubular construction provides flexible, enclosed shielding, ideal for irregular cable routing.

3

Superior Shielding Efficiency

90% coverage ensures minimal signal interference and radiation emission from conductors.

4

Flexible and Durable

Easily conformable to cable geometry without sacrificing strength or shielding performance.

5

Military-Grade Compliance

Conforms to MIL-N-14411, Comp 1 and A-A-59569 standards-trusted for aerospace, defense, and mission-critical applications.

Submarine surfacing at sea

Product Variants

CO-NETIC® AA Cable Shield
Item #Item NameNominal I.D.Expands toCoverageEndsCarriersAWGNet Weight
WBS-2501/4 inch AA CABLE SHIELD1/4 inch5/16 inch85 to 90%1624360.03125 lb/ft
WBS-5001/2 inch AA CABLE SHIELD1/2 inch5/8 inch85 to 90%1148360.04678 lb/ft
WBS-7503/4 inch AA CABLE SHIELD3/4 inch7/8 inch85 to 90%1148360.07812 lb/ft

Applications

1

EMI suppression in sensitive instrumentation cables

2

Aerospace, defense, and satellite communication wiring

3

Low-frequency magnetic shielding for medical and scientific equipment

4

High-performance audio and sensor cabling

Frequently Asked Questions

CO-NETIC® AA Cable Shield is designed to attenuate low-frequency magnetic fields from DC to 100 kHz. It provides high-permeability protection for sensitive instrumentation where standard high-frequency EMI foils are ineffective.
