Current Sensing Modules
Smart, Customizable Monitoring for Next-Generation Battery Systems
A design study that integrates precise current sensing and battery connectivity into a compact, high-performance package.

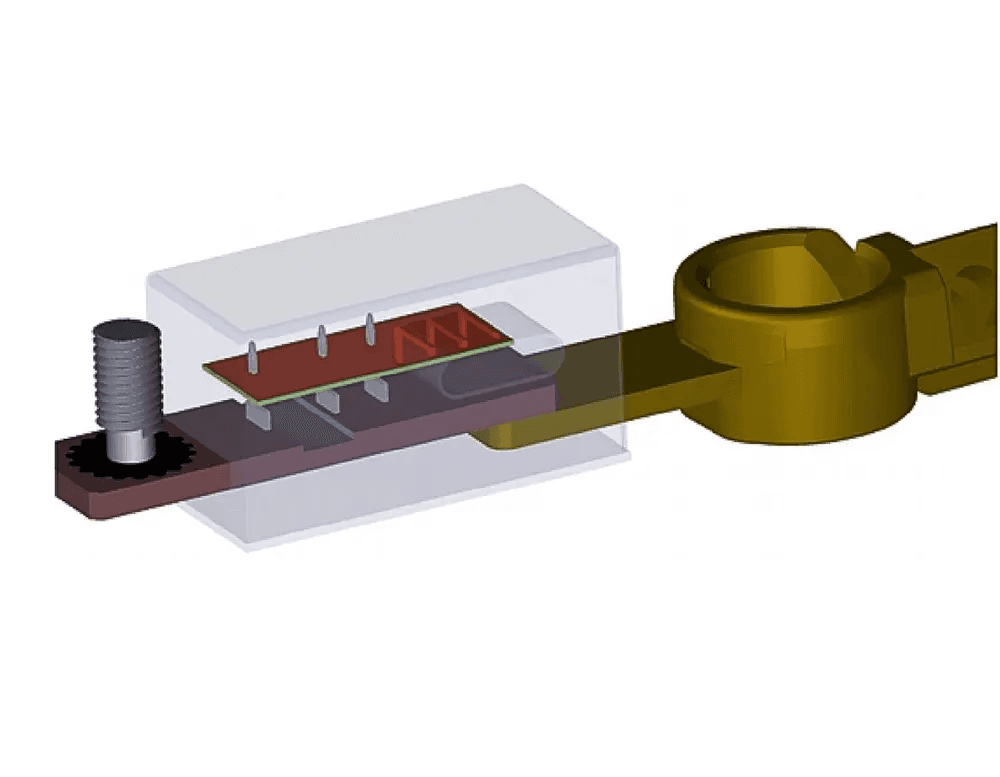

The Smart Battery Clamp is a customer-specific electronic monitoring module designed for automotive, e-mobility, and renewable energy systems.
Key Elements of the Smart Battery Clamp Design
1
Built-in for precise current measurement; compatible with ±5A to ±500A input ranges.
2
Custom copper or alloy busbars tailored for high-current applications.
3
Features the Melexis 91208 for contactless, reliable current sensing.
4
Assembly-friendly designs using press-fit or rivet connections.
5
Provides electrical insulation and environmental protection.
6
In-house production for shunt and busbar assemblies ensures high quality and cost efficiency.
1
Accurate current and voltage monitoring for high-performance batteries.
2
Used in automotive and electric vehicle power management systems.
3
Designed for hybrid and electric drivetrains.
4
Real-time battery health diagnostics.
5
Optimized for energy storage and load balancing.
6
Dual-sensing (shunt + Hall) enables redundancy and fail-safe operation.
7
Support throughout the partnership
1
Tailored to your application, from terminals to sensing method
2
Choose from shunt, Hall effect, or hybrid combinations
3
Integrates multiple components into one space-saving unit
4
Molded housing protects electronics in harsh environments
5
Dual-sensing technology supports ISO 26262-compliant systems
| Parameter | Typical Value | Unit |
|---|---|---|
| Primary input current range | ±5 - ±500 | A |
| Voltage measurement range | ±5 - ±800 | V |
| Maximum power | 60 | W |
| Operation temperature range | –50 - 150 | °C |
Its integration of current sensors (shunt or Hall) with robust packaging and customizable connections enables real-time battery diagnostics in a compact module.
Academic-Grade Magnetic Shielding Prototyping Kit
Your First Step to Hands-On Magnetic Shielding Prototyping

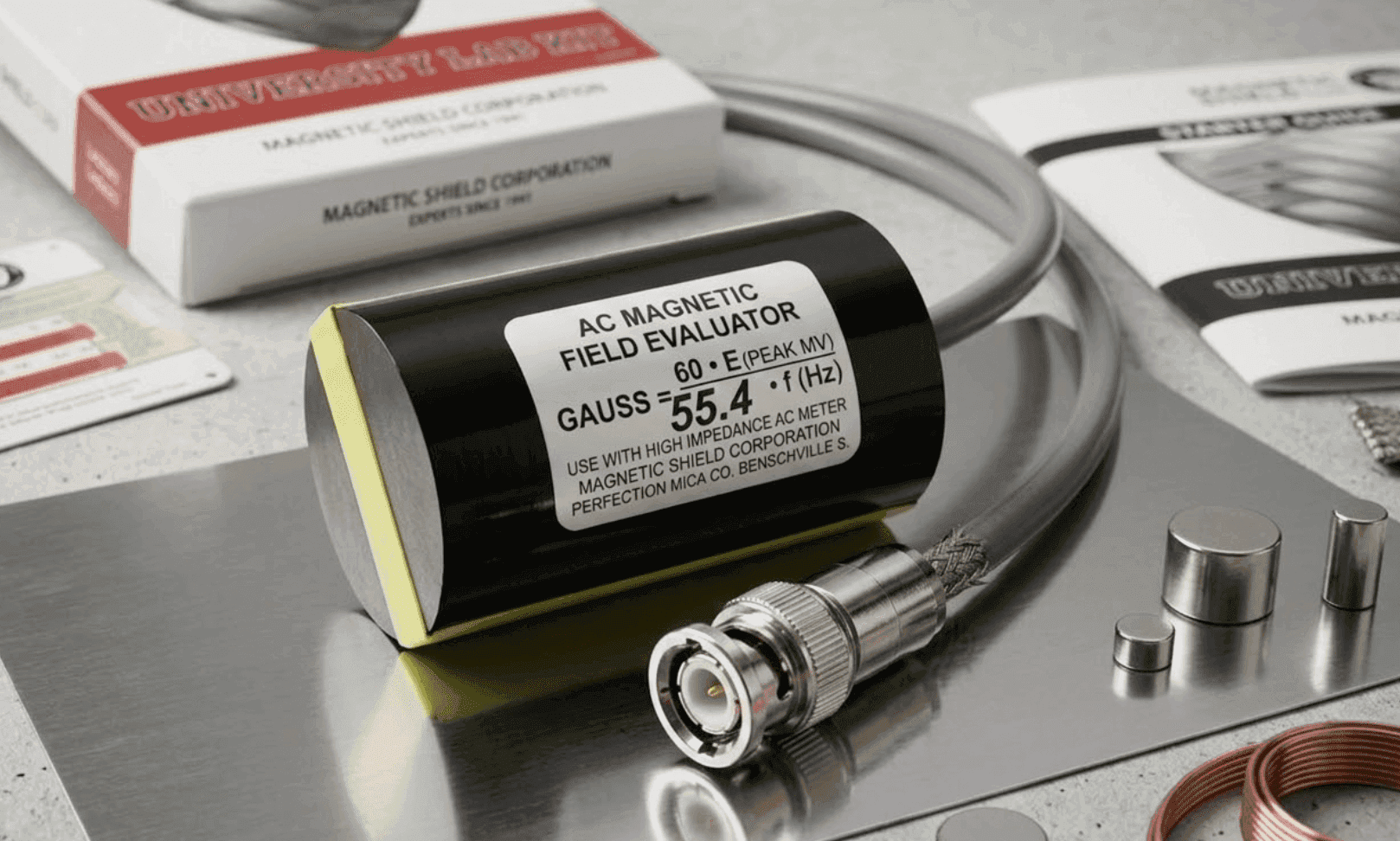

Precision AC Magnetic Field Probe with Axial Sensitivity

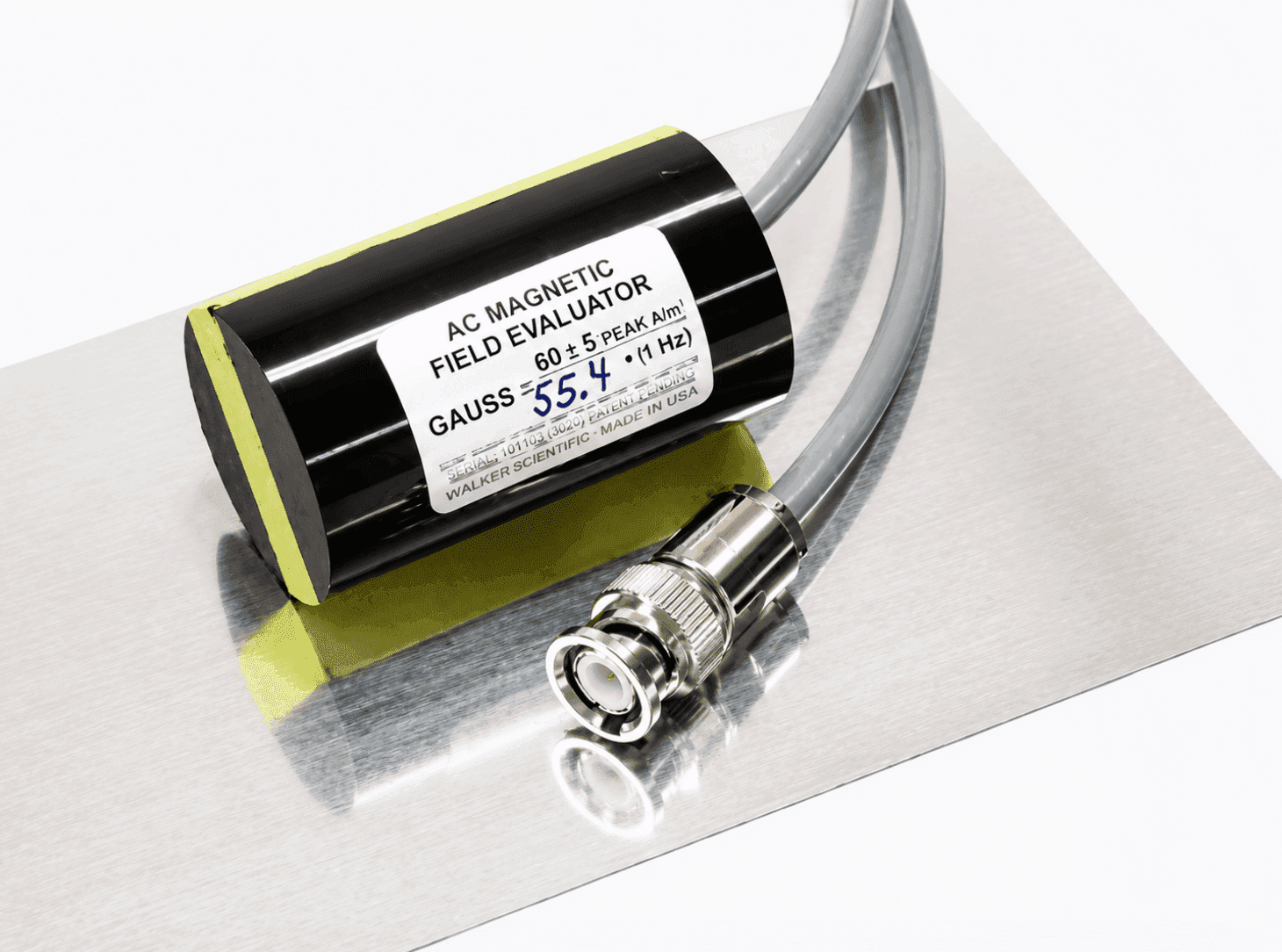

Precision AC Magnetic Field Probe with Transverse Sensitivity
