High-Permeability Magnetic Shield for PCB-Based Current Sensors

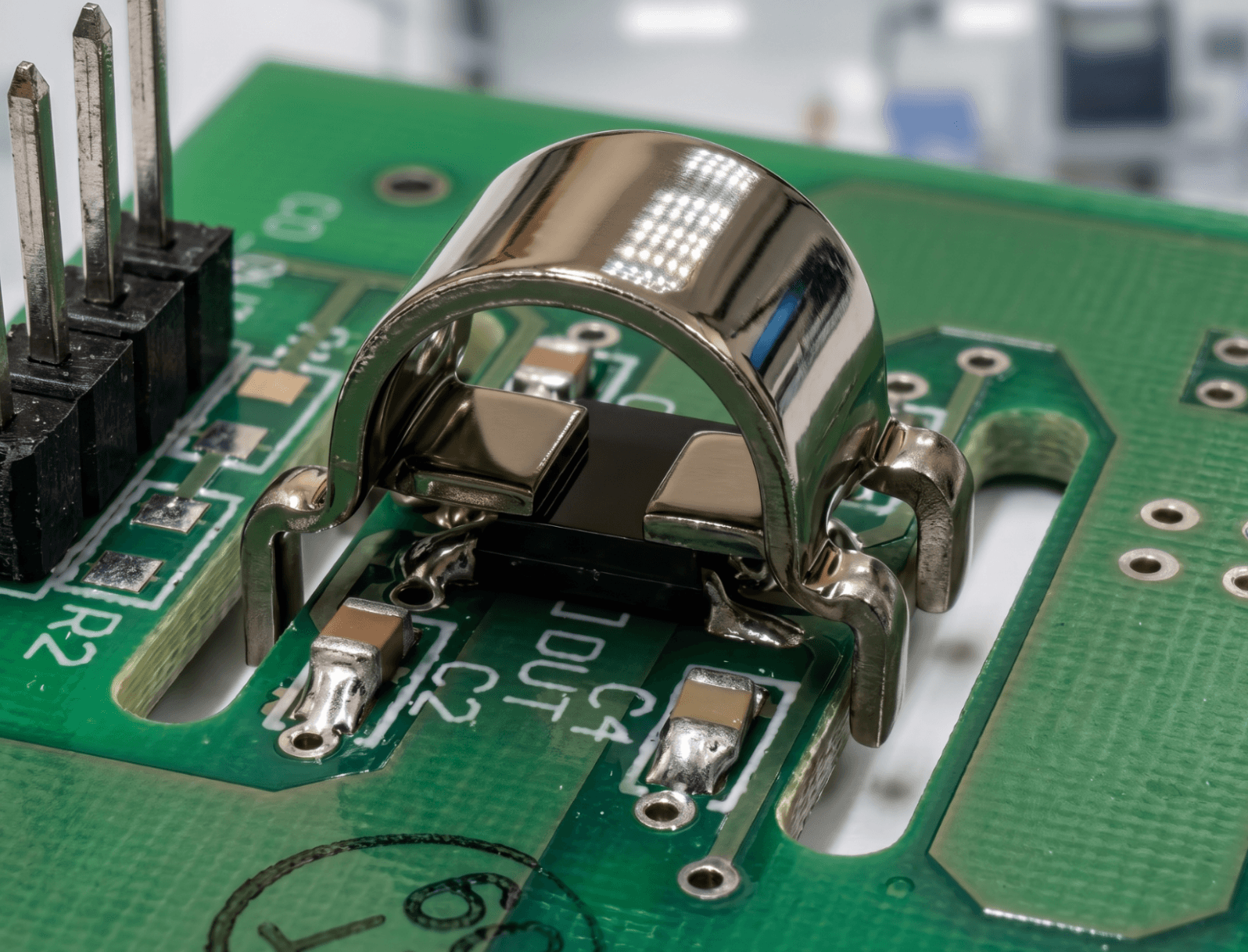

Developed for use in PCB-mounted configurations, the UCR3.5 enables precise, contactless current measurement, making it ideal for compact, high-efficiency electronic designs.
Engineered with high linearity and minimal hysteresis, it significantly enhances the performance of magnetic field sensors, such as Hall and AMR sensors, by concentrating magnetic flux and minimizing the effects of parasitic magnetic fields.
1
2
3
4
5
6
7
All dimensions are in millimeters. Custom geometries are available for application-specific requirements.
| Magnetic Characteristics | ||
|---|---|---|
| Parameter | Typical Value | Unit |
| Relative Permeability | 100'000 | a.u. |
| Initial Relative Permeability | 7000 | a.u. |
| Saturation Flux Density | 1 | T |
| Hysteresis | 2.8 | A/m |
Other thicknesses and material grades available on request.
