Formed / Deep Drawn Shields

SMD Shield

Soft Ferromagnetic Surface-Mount Shield for Current Sensor Applications

Compact, High-Performance Shielding for PCB-Based Magnetic Sensors

Optimized for integration with Hall effect, AMR, or other magnetic field sensors, the SMD shield enhances sensing accuracy and stability in space-constrained environments.

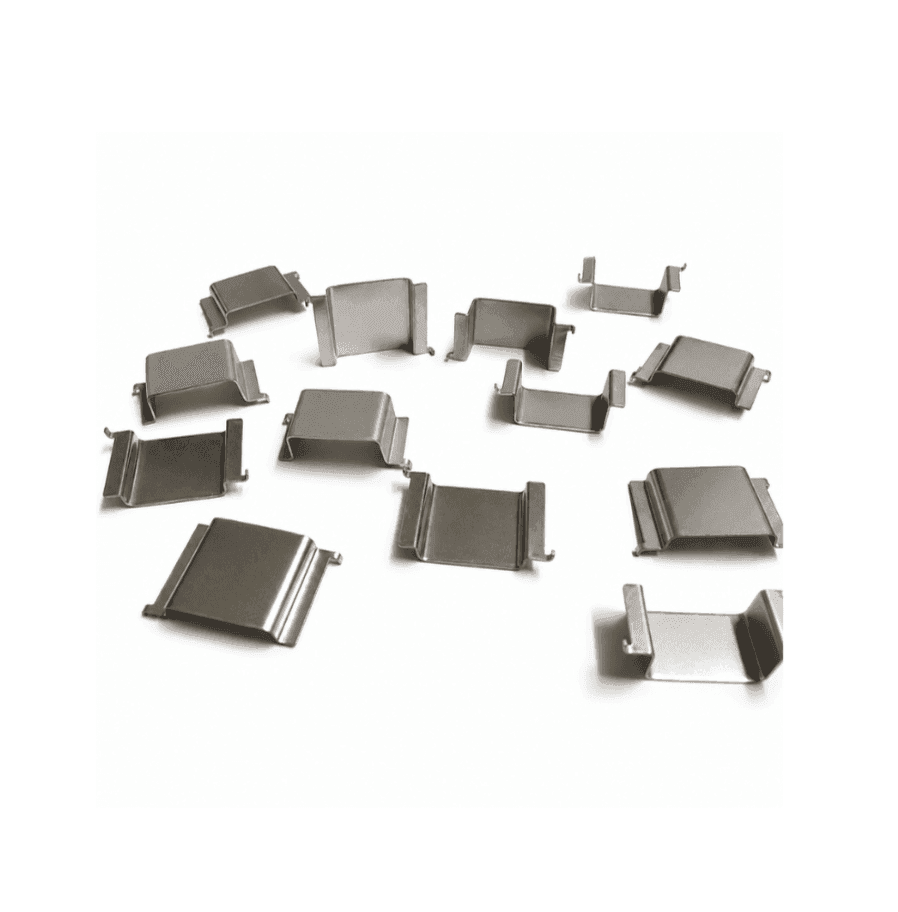

SMD Shield: Surface-Mount Magnetic Protection for PCBs

The SMD Shield is a compact, surface-mountable magnetic shield designed for use with PCB-based current sensing applications.

Available Sizes (All Dimensions in mm).

Available Sizes for SMD Shield

Other custom sizes available upon request.

Sizes Available
Product Name	Length		Height		Thickness
Product Name	inches	[mm]	inches	[mm]	inches	[mm]
SMD 2.5	0.472	12	0.098	2.5	0.0137	0.35
SMD 5	0.315	8	0.197	5	0.0137	0.35

Magnetic Properties

Material: Standard version contains 48% Nickel-Iron, custom alloy compositions available upon request.

Magnetic Characteristics
Parameter	Typical Value	Unit
Relative Permeability	100'000	a.u.
Initial Relative Permeability	7000	a.u.
Saturation Flux Density	1	T
Hysteresis	2.8	A/m

Key Features

Surface-mount design for easy PCB integration

High linearity and low magnetic loss

Accurate shielding in confined board-level environments

Dual-side PCB mounting (top/bottom)

Automotive and industrial application-ready

Customizable shapes and sizes

Technical Properties

Designed for Embedded Sensor Shielding

High-Performance Soft Magnetic Alloy

Constructed using a NiFe alloy (48% NiFe), the SMD Shield achieves: High permeability (μr up to 100,000), very low hysteresis (2.8 A/m), Curie temperature of about 450°C, stable saturation flux density (1 Tesla)

Ideal for Planar Current Sensing

The shield is placed directly above or below the sensor, protecting it from parasitic magnetic fields while enabling accurate current measurement.

Flexible Mounting Options

Diagonal leads ensure precise alignment with the magnetic sensor, mountable with glue or available with solderable pins upon request.

Frequently Asked Questions

: Magnetic shielding materials attract and guide magnetic field lines away from sensitive components. By creating a preferred path for the magnetic field, they reduce the field strength within protected regions.
