RCCB High Performance Nano Crystalline Safety Cores

Advanced RCCB Cores for Residential and Industrial Safety

Designed for both 2-pole and 4-pole systems, they offer superior thermal stability and reliability to keep personnel and equipment safe.

RCCB Nano Crystalline Cores for Enhanced Leakage Protection

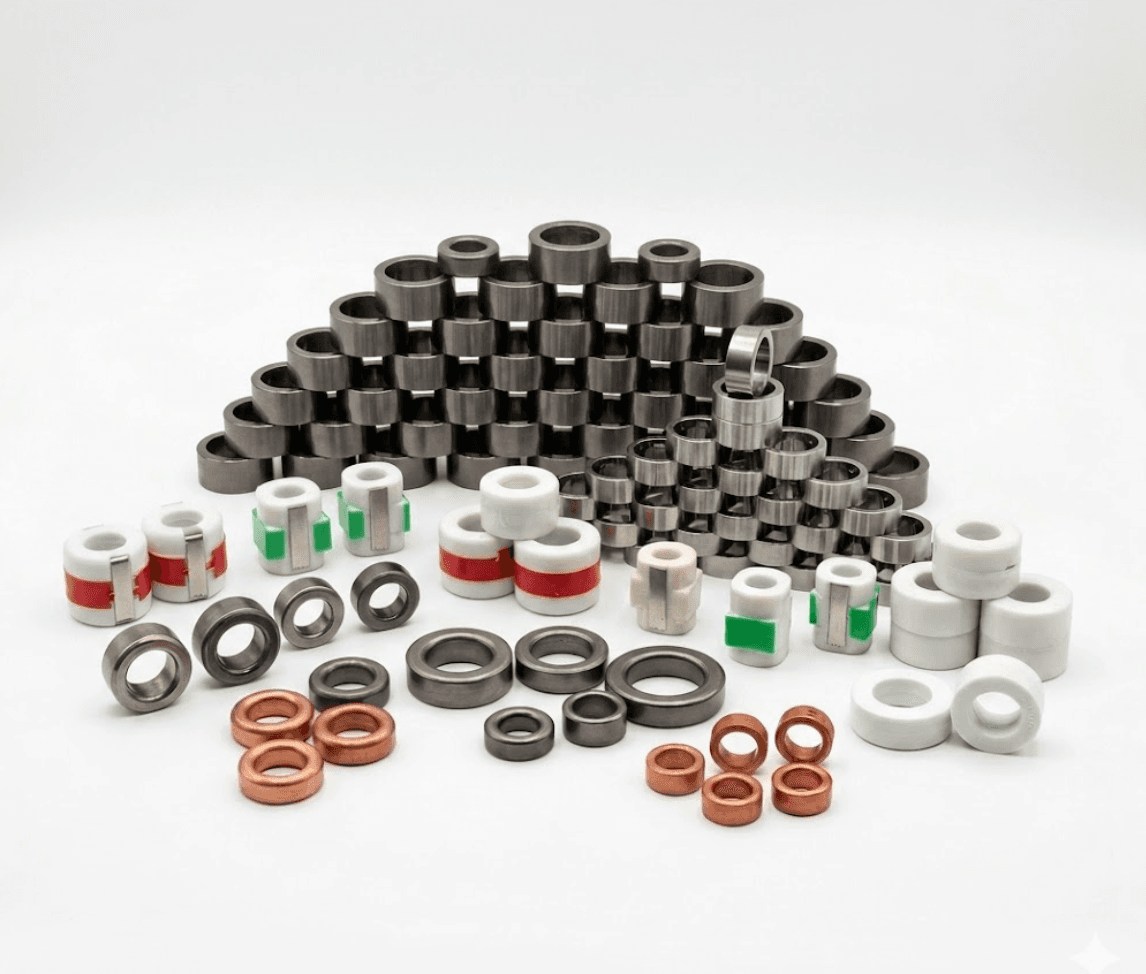

Voltage-independent Residual Current Circuit Breakers (RCCBs), enhancing safety in both residential and industrial electrical systems. RCCBs detect leakage currents and disconnect the power supply when faults occur, ensuring personnel and equipment safety. These toroidal-shaped cores, encased in protective plastic, are optimized for different RCCB types, including electronic and electromagnetic variants. They support 2-pole and 4-pole configurations with rated currents ranging from 10A to 100A and sensitivities of 30mA, 100mA, and 300mA.

Technical Specifications

Current Ratings & Magnetic Properties:

Sr. No.	Leakage current ratings	Initial Permeability(k)	Max. Permeability(k)
1	10-30mA	100 - 180	350 - 500
2	100mA	80 - 150	190 - 350
3	300mA	70 - 110	100 - 160
4	500mA	50 - 70	80 - 100

Nano-Crystalline Core Material Properties

Basic Parameter	Nano Core
Saturation Flux Density (T)	1.25
Initial Permeability	50,000 – 180,000
Maximum Permeability	80,000 - 500,000
Density (g/cm2)	7.25
Curie Temperature	570
Ribbon Thickness (mm)	0.025-0.030
Occupation Stack factor	0.8

Core Dimensions

Bare Core Size	Finish Casing Size
ID x OD x Ht	ID x OD x Ht
13 x 17.8 x 5 mm	11.60 x 19.60 x 6.55 mm
14 x 20 x 10 mm	12.10 x 22.60 x 11.75 mm
16 x 26 x 10 mm	14.10 x 28.30 x 12.70 mm
20 x 30 x 15 mm	17.80 x 33.50 x 17.85 mm
10 x 15 x 20 mm	8.25 x 18.20 x 22.35 mm
13 x 21.5 x 18 mm	11.55 x 24.65 x 21.30 mm
13.8 x 20 x 12 mm	11.65 x 24.15 x 15.40 mm
17 x 24.5 x 20 mm	15.70 x 28.20 x 22 mm
11.5 x 18 x 20 mm	9.70 x 23.50 x 22.50 mm
12 x 24 x 25 mm	9.80 x 26.70 x 27.80 mm
9 x 15 x 20 mm	7 x 17.50 x 24 mm
12 x 23.5 x 22 mm	10 x 25.5 x 24.3 mm
